SKU : ARDPM-A26

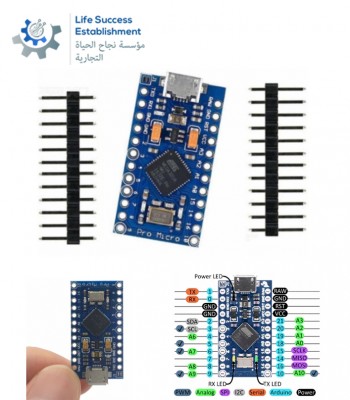

Arduino Pro Micro 5V 16Mhz ATmega32U4 Inbuilt USB Serial Programmer


The Pro Micro is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface.


This tiny little board does all of the neat-o Arduino tricks that you're familiar with: 9 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere.
There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.


ATMEGA32U4 runs at 5V/16MHz
Supported IDE V1.0.1 and Above
Micro USB interface programming on the board
4 10-bit ADC pins
12 digital I / O (5 PWM capability)
Rx and Tx hardware serial connection
