SKU : PS3005V30A5-T4

For demo video click here: https://www.youtube.com/watch?v=49wIfRjKswM

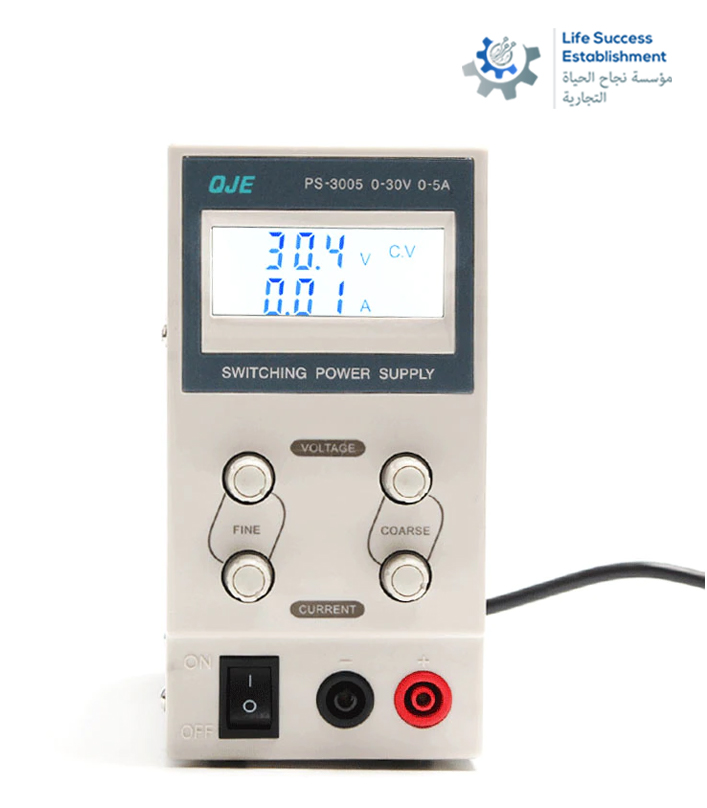

this series are DC Switching Power Supply with accuracy 3 digital meter. The output voltage can be adjusted from 0 to 30 V and the output current is from 0 to 5A.
Feature:
Input voltage:AC 220V +/- 10PHz+/-2Hz
Output voltage: 0~30V (conti.adj.)
Output Current: 0~5A (conti.adj.)
Supply Regulation: CV<=1%+10mv>
Load Regulation: CV<=1%+5mv>
Ripple: 200mV (p-p)
Protection: Current Limit
Meters Indicator accuracy:
3 digital meters accuracy: Voltmeter:LCD +/- 1% + 2 Digits Ammeter:LCD +/- 1% + 2 Digits
Operation Ambient: Temperature: 0~40 degree Humidity: < rh atmosphere="" pressure:="" kpa~104kpa="">
Operating Time: 8hr . conti.
Size: 85*160*205mm
Packing including:
1 x PS3005 Power Supply
1 pair power output cable
1 x Power cable
