SKU : SM06-G11

42H47HM stepper motor Two-phase four-wire HQ high torque 0.5 Nm high precision 0.9 degree 42


This batch of two-phase four-wire 42 stepping motor, double ball bearing, exquisite workmanship, model 42H47HM, is commonly used: 3D printer, CNC cutting plotter, textile machinery, medical equipment, robot automation equipment, computer swing head, monitoring head tilting head. ..... and so on, and this batch of motors is a high-precision step angle of 0.9 degrees, such as the 47-step 42-step is a relatively rare motor of 0.9 degrees.

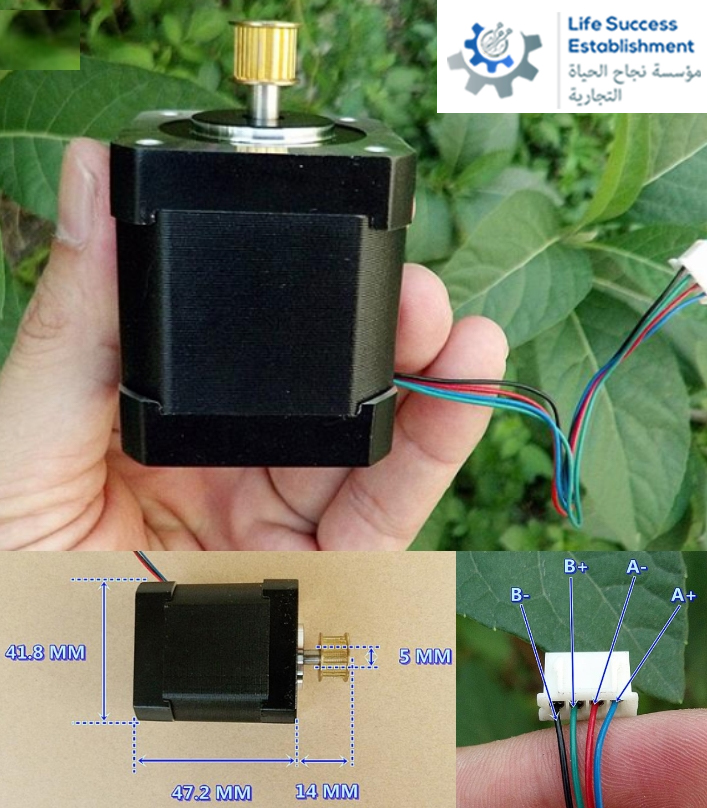

Stepper motor specifications: 42 MM
Light motor height: 47.2 MM
Output shaft: 5 MM
Output shaft length: 14 MM
Step angle: 0.9
Resistance: A section is about 6.9 ohm
Lead wire: two-phase four-wire
Line length: 95 MM
(The red and blue lines are phase A, and the blue and black lines are phase B)
12V short circuit current: 1.58A
Torque: 0.5 Nm (estimated)
Weight:  357 grams
