A2212 2200KV Outrunner Bruhless motor + Parts
Sold By :
Price :
SAR42.00 /1
- SKU: MB2212KV2200-G14

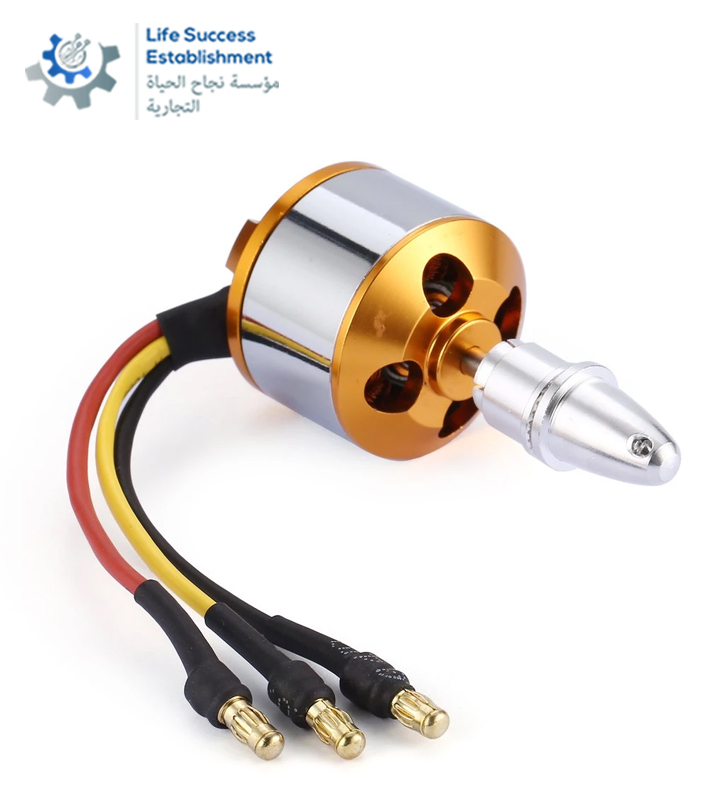

- The motor features a 3.17mm hardened steel shaft, dual ball bearings, and has 3.5mm gold spring male connectors already soldered, and also includes 3 female connectors for your speed control. A bullet type prop adapter and cross motor mount are included in the package. Mounting holes have 16mm and 19mm spacing on centers and are tapped for 3mm (M3) screws.
We recommend the following setup for the motor:
3S LiPo setup for warbird, scale models and trainers:
3S LiPo, 1000-1800mAh according to aircraft weight,
25 or 30A ESC,
8x4 propeller.
2S LiPo setup for 3D airplanes and trainers:
2S LiPo, 1000-1800mAh according to aircraft weight,
25 or 30A ESC,
9x4.7 propeller.
Specifications:
Number of Cells: 2-3s lipo; 6-10 cell NiMh
Max Efficiency Current: 6-12A (>75%)
No Load Current (10v): .7A
Max Current: 16A/60s
Max Efficiency: 78%
Internal Resistance: 65mO
Shaft Size: 3.17mm
Poles: 14
Max Watts: 180w
Weight: 47g
Dimensions: 27.5
x30 (mm)The motor features a 3.17mm hardened steel shaft, dual ball bearings, and has 3.5mm gold spring male connectors already soldered, and also includes 3 female connectors for your speed control. A bullet type prop adapter and cross motor mount are included in the package. Mounting holes have 16mm and 19mm spacing on centers and are tapped for 3mm (M3) screws.
We recommend the following setup for the motor:
3S LiPo setup for warbird, scale models and trainers:
3S LiPo, 1000-1800mAh according to aircraft weight,
25 or 30A ESC,
8x4 propeller.
2S LiPo setup for 3D airplanes and trainers:
2S LiPo, 1000-1800mAh according to aircraft weight,
25 or 30A ESC,
9x4.7 propeller.
Specifications:
Number of Cells: 2-3s lipo; 6-10 cell NiMh
Max Efficiency Current: 6-12A (>75%)
No Load Current (10v): .7A
Max Current: 16A/60s
Max Efficiency: 78%
Internal Resistance: 65mO
Shaft Size: 3.17mm
Poles: 14
Max Watts: 180w
Weight: 47g
Dimensions: 27.5x30 (mm)
Minimum Recommended ESC: 20A
Recommended Model Weight: 300-800g
Minimum Recommended ESC: 20A
Recommended Model Weight: 300-800g
