SKU : 2212K10-D83S4

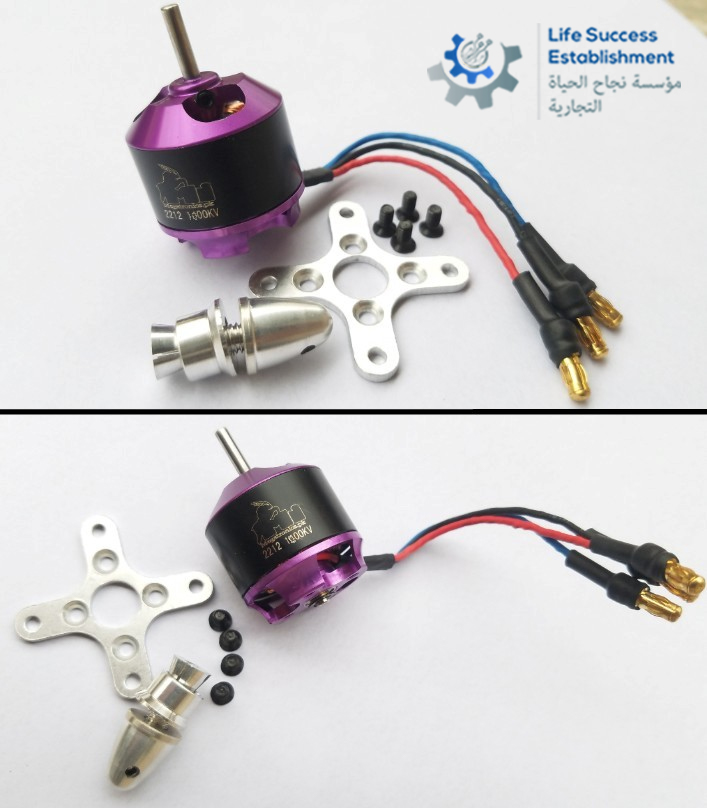

Megatronics A2212 1000KV brushless motor Multirotor Quardcopter

Using high quality bearings, magnets and imported silicon steel sheet, thus ensure the service life of motor and performance.
100% of dynamic balance calibration, minimize vibration that caused by the loss of energy.
Each motor was tested through 63 quality inspection, ensure the motors being reliable.
Use for Plane / Multi-rotor( Tricopter, Quad-X, Hexacopter…and so forth)

We recommend the following setup for the motor:
3S LiPo setup for warbird, scale models and trainers:
3S LiPo, 1800-5200mAh according to aircraft weight,
25 or 30A ESC,
10x4 propeller.

Specifications:
Number of Cells: 2-3s lipo; 6-10 cell NiMh
Max Efficiency Current: 6-12A (>75%)
No Load Current (10v): .7A
Max Current: 16A/60s
Max Efficiency: 78%
Internal Resistance: 65mO
Shaft Size: 3.17mm
Poles: 14
Max Watts: 180w
Weight: 47g
Dimensions: 27.5


Packing List
1 x Motor
1 x Mounting bracket
1 x Propeller adapter
4 x Screws
