SKU : SER360-D44S4

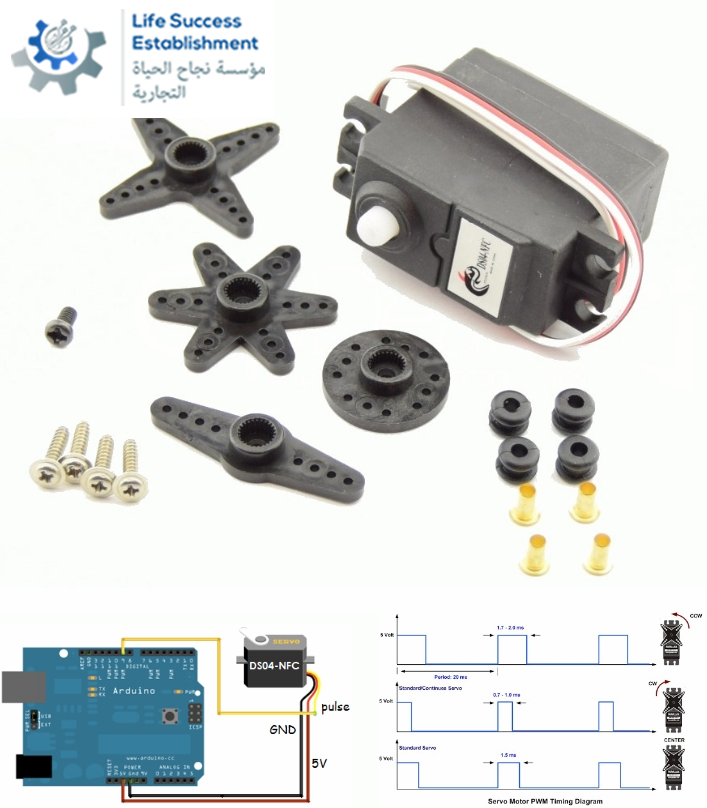

DS04-NFC 360 degrees continuous rotation servo

This Continuous Rotation Servo is ideal for robotics and basic movement projects. It is designed for continuous rotation and is easily interfaced with microcontrollers like the Arduino. It works just like a regular servo, except it's made to rotate continuously. You can vary the speed and direction by manipulating the pulses to the servo. Includes a servo horn and can easily attach to a wheel.

1) Model: DS04-NFC
2) For Aerospace Model / Cars / robot
2) Weight: 38g
3) Dimensions: 40.8 x 20 x 39.5 mm
4) Torque: 5.5kg / cm (at 4.8V)
5) Speed: 0.22sec / 60 (at 4.8V)
6) Operating voltage: 4.8v-6v
7) Operating temperature: 0 degree -60degree
8) Current: <1000mA>

description:

just enter a 50hz square wave signal output terminals, and high pulse duration control signal cycle time can control the speed and reversing stall. a high pulse duration corresponds to a speed. high for 1 ms to 1.5 ms, steering gear forward 1 ms forward the fastest, the slower the closer to 1.5 ms, 1.5 ms servo stall , high servo reverse 1.5 ms to 2 ms 1.5 ms servo stall, the closer the faster the speed of the reversal of 2 ms, 2 ms, the fastest reversal .

the steering gear with a median adjustment potentiometer open shell to pry the circuit board to see , debugging can be high pulse is set at 1.5 ms to observe the steering gear stall, if you stop and turn on the regulation potentiometer until the stall so far, so the zero.
