SKU : CAM40C1-F10B

25mW LST-S2 5.8G 800TVL Camera HD Micro CMOS FPV

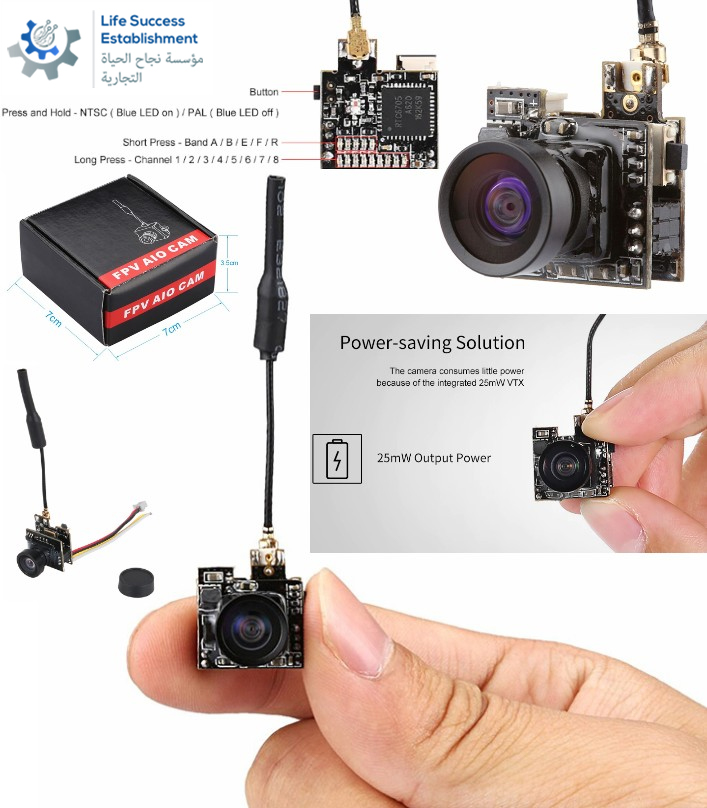

LST - S2 is an excellent all-in-one FPV camera that integrates an 800TVL HD CMOS camera, a 5.8G 40CH 25mW video transmitter, and a whip antenna. No soldering is needed. Just connect it to a 1S battery or the flight controller of your drone, then, you are able to enjoy the sharp image and real-time FPV. The AIO camera is extremely light and power-efficient, so the battery of your drone can last longer.

Main Features:
? Super light, only 3.6g including 800TVL HD camera, VTX, and antenna
? Ultra wide angle lens, 150-degree FOV, 170-degree DFOV
? Five bands, 40 channels in total, with RaceBand ( Band R )

Specifications:
Sensor: 1/4 inch CMOS
Lens: M7 800TVL HD
Angle of view: 150-degree FOV, 170-degree DFOV
Power consumption: 380mA at 3.7V
Power supply: 3.6 - 5.5V
TV system: NTSC / PAL switchable
Output impedance: 75 ohm
Output signal strength: 23 - 24dBm
Output power: 25mW
Number of channels: 40
Audio carrier: 6.5MHz
