SKU : CAM40C2-F10A

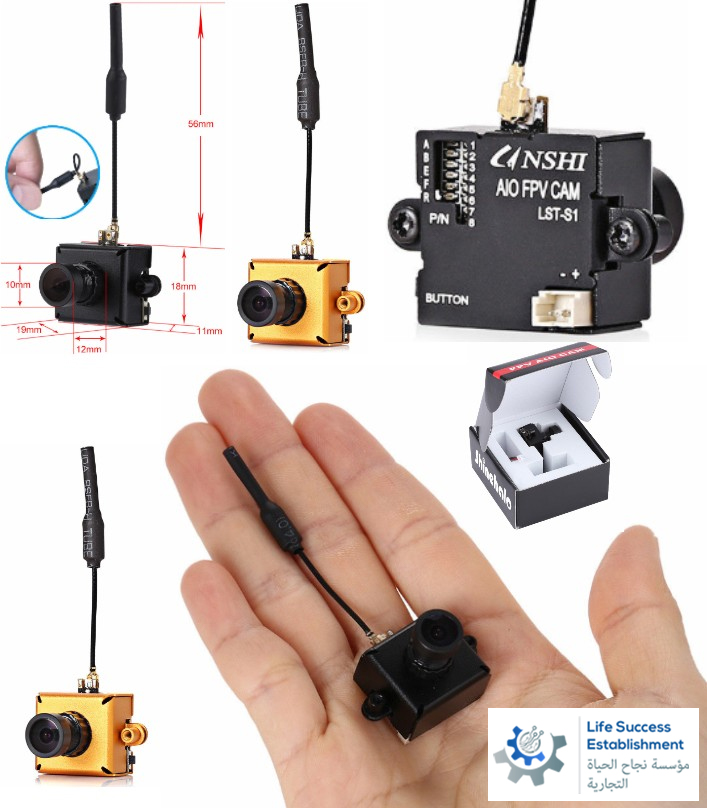

LST-S1 AIO 800TVL CMOS MINI FPV HD CAMERA WITH 5.8G 40CH 25MW VTX 3DBI

Main Feature:
No soldering is needed. Just connect it to a 1S battery or the flight controller of your drone, then, you are able to enjoy the sharp image and real-time FPV.
- Ultralight, only 8g with metal case. Camera, video transmitter and antenna are integrated
- 800TVL HD, 5.8G real-time image transmission within 500 - 700m range ( in open air )
- Enjoyable wide angle of view, i.e. 150-degree FOV and 170-degree DFOV
- The unbreakable 3dBi whip antenna can be rotated 180 degree

Specifications:
FPV Camera
Sensor: 1/3 inch CMOS
Lens: M8 800TVL
Angle: 150-degree FOV, 170-degree DFOV\u00a0\u00a0\u00a0
Video format: NTSC / PAL ( switchable )
Power consumption: 380mA at 3.7V
Input voltage: 3.6 - 5.5V
Lens mirror diameter: 2.1mm ( IR coated )

Video Transmitter
Video format: NTSC / PAL ( switchable )
Output impedance: 75 ohm
Output signal strength: 23 - 24dBm
Output Power: 25mW
Channel: 40
Antenna: 3dBi
Operating voltage: 3.6 - 5.5V
Operating current: 100mA
Audio carrier: 6.5MHz

Button Functions:
Short press ( about 1 second or less ): change channels 1 - 8
Long press ( more than 1.5 seconds ): change bands A, B, E, F, R
Long press ( more than 3 seconds ): change NTSC / PAL system ( blue LED on = NTSC; blue LED off = PAL )

Band A 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band B 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
Band E 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band F 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band R 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917

FPV Equipments: FPV Mini Camera
Functions: Video
Package weight: 0.093 kg
Product size (L x W x H): 3.00 x 1.70 x 2.50 cm / 1.18 x 0.67 x 0.98 inches
Package size (L x W x H): 7.20 x 7.00 x 3.50 cm / 2.83 x 2.76 x 1.38 inches
Package Contents: 1 x FPV Camera, 1 x English Manual
