SKU : MC8B-F6

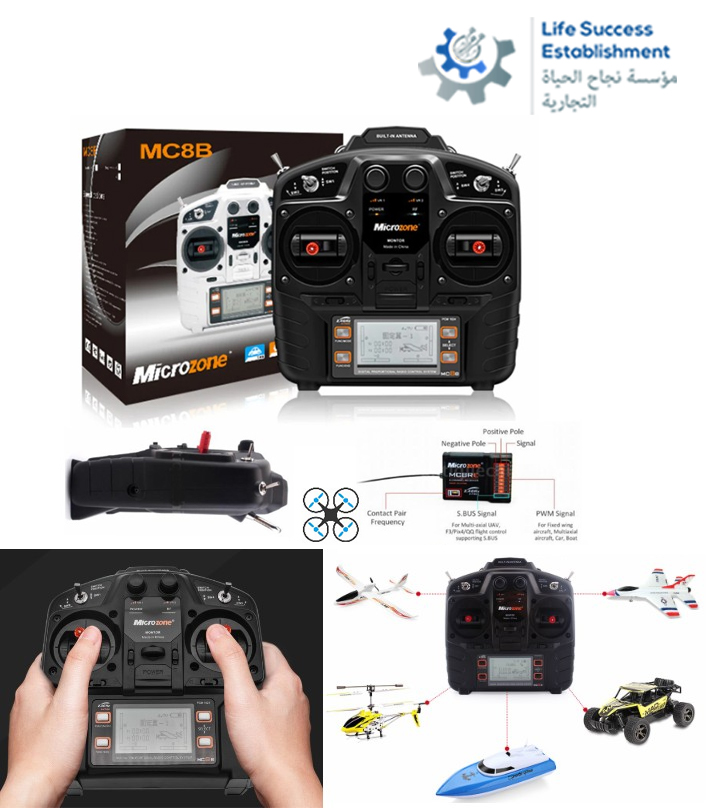

Microzone MC8B 2.4G 8CH Remote Control with Receiver PWM SUBUS for Fixed Wing Aircraft Quadcopter Boat

Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC8RE 9CH Receiver is specially designed and manufactured for RC Drone Aircraft Helicopter Multi-copter Car Boat.

Feature:
Low voltage alarm mode: LED indicator and buzzer alarm at the same time
Supply analog and external power, LCD displays Chinese and English menu
The receiver wide voltage design (DV 2V-9V) supports 8 PWM signals and 1SBUS signals
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment
The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude
The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft

MC8B Specification:
Product name: MC8B 2.4G 8CH Transmitter
Size: 180 * 170 * 50mm
Weight: 0.53kg
Frequency: 2.4GHz
RF range: 2405MHz---2479MHz
RF power: less than 100mW
Channel bandswidth: 500KHz
Working voltage: 4.2-6V
Modulation mode: FSK
Sensitivity: 1024
Signal output: 8 PWM signals and 1 SBUS signals
Power: 4 * 6V 1.5AA (Not include)
Analog and external power supply: YES
Adopt the latest FHSS mode in line with European standards
Certificate: FCC, CE_RED
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system)
Internal software support: CH5---CH8, arbitrary replacement of settings and CH1--CH8 signal detection
Internal software support: M1 and M2  throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset

MC8RE Specification:
Product name: MC8RE Receiver
Antenna length: 110mm
Output channel: 8 PWM signal channels and 1 SBUS signal channel
Reception frequency: 2401MHZ-2479MHZ
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models.
Size: 42 * 28 * 12mm
Weight: 12g

Package information:
Package size: 22 * 21.5 * 10.5cm / 8.66 * 8.46 * 4.13in
Package weight: 662g / 1.46lb
Gift box package

Package list:
1 * MC8B 2.4G 8CH Transmitter
1 * MC8RE Receiver
