SKU : SPRF3-P16

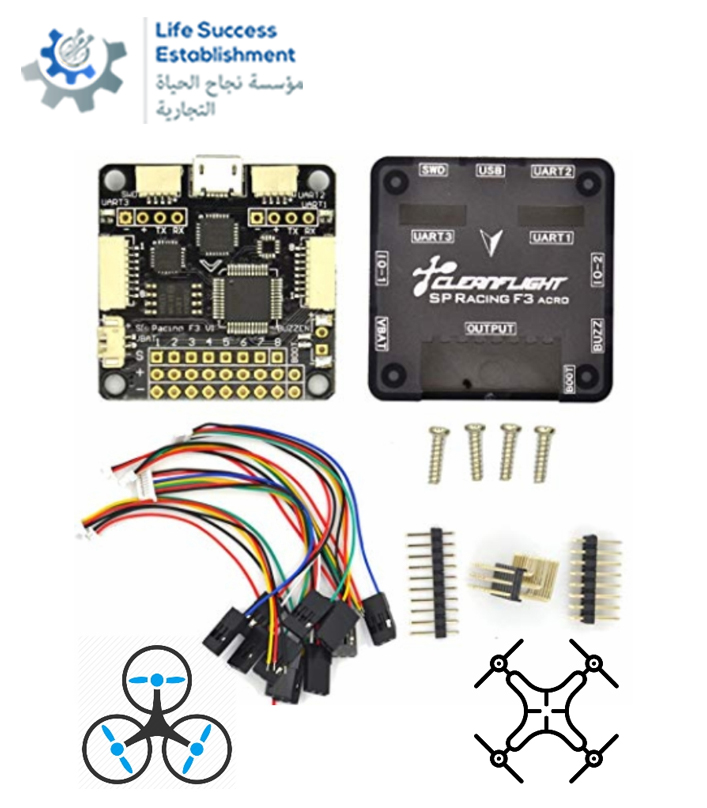

SP Racing F3Acro Flight Controller 6DOF with Protective Case quadcopter tricopter hexacopter


Acro: Standard model for racing/acro flying.
The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots.
SP Racing F3 Flight Controller Acro 6 DOF for RC Multicopter for DIY Mini 180 190 195 210 220 250 280 300 330 RC Drone.
Supports OneShot ESC and more than 8 RC channels. Supports more flight controllers, including CC3D, CJMCU and Sparky.
Many more features such as RGB LED strip support, Autotune, In-flight PID tuning with your radio, blackbox flight data logging etc.
Better coding practices and introducing tests, easier to maintain and for future development. (Dominic has software development background). Additional PID controllers that uses floating point arithmetic operations. (now has 3 built-in PID Controllers)


Features
No compromise I/O. Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED
Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!
On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork ( Deluxe).
Next-generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster
ARM-Cortex M4 core.
Stackable design - perfect for integrating with OSDs and power distribution boards.
16 PWM I/O lines for ESCs, Servos and legacy receivers. 8 available on standard pin headers. 8 via side mounted connectors.
Full support for OneShot ESCs for easy PID tuning and a sharper response. Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required(built-in).
Dedicated output for programmable LEDs - great for orientation, racing and night flying.
Dedicated I2C port for connection of OLED display without needing flight battery.
Battery monitoring ports for voltage and current.
Sonar support for precision low-altitude hold.
Buzzer port for audible warnings and notifications.
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
Symmetrical design for a super tidy wiring. Wire up using pin headers, JST-SH sockets or solder pads. Use either right-angled or straight pin-headers.
Barometer mounted on the bottom of the board for easy wind isolation.
Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
Configuration of the flight controller via a cross-platform GUI (Windows/OSX/Linux).
