SKU : ESC30A-D70

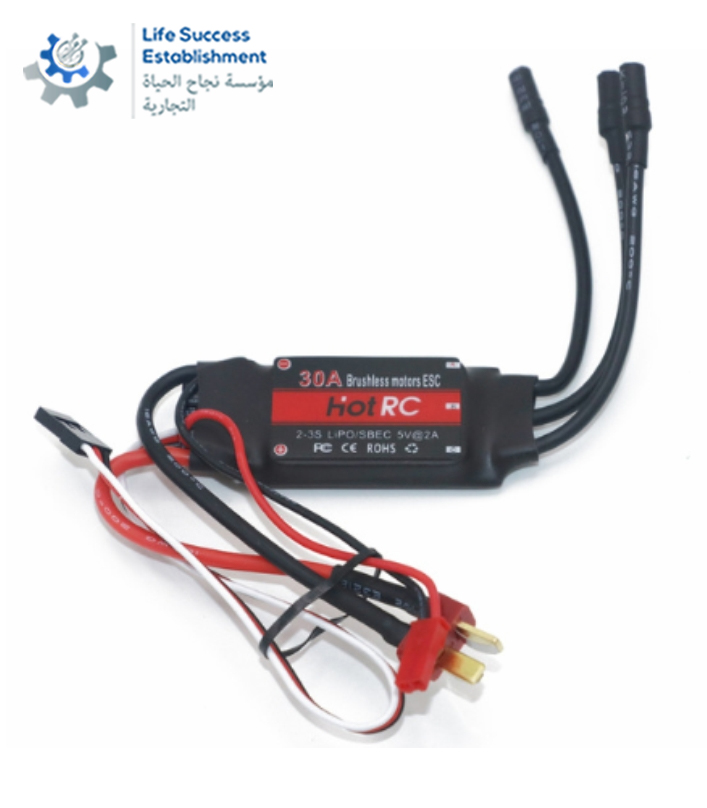

30A Brushless ESC with T-Plug and 3.5mm Bullet Connectors on Wire Ends


Programmable 30A ESC adopts high-quality genuine components. The strict monitoring production makes it have good quality and abundant functions. With male type 3 plugs and bullet connectors already installed on input and output cables means flexibility, strong connection and ease of use.


Features
Brand: HotRC
Safety Function : If throttle stick not at bottom while connecting battery, motor will not start
Throttle Range Setting
Programmable using Hobbywing Program Card or by using Throttle Stick
Configurable Braking
Low Voltage Protection Thresholds (for each cell Low 2.85v/ 3.15v/3.3v)
Configurable Startup modes
Protections
Over-heat protection
Startup failure Protection
Throttle Signal Loss Protection
Overload Protection
Double capacitors offer lower ESR and higher capacitance
With male type T-Plug already attached on power leads
With 3.5mm bullet connectors installed on all 3 output leads
Technical Specifications
Output capacity: Con. Current 30A
Burst current 40A (less than 10 sec.)
Input: 2s-3s Li-Po or 5-9 NiMH battery
BEC Output: 5V@2A (linear model)
Max motor speed: 210000 PRM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles)
Dimention (mm):68 x25 x8
Weight: ~35g
