TM1637 4-Digit 7-Segment Red Display Module


DESCRIPTION
The TM1637 4-Digit 7-Segment Red Display Module incorporates four 0.36? red 7-segment displays along with the TM1637 serial LED driver.


PACKAGE INCLUDES:
TM1637 4-Digit 7-Segment Red Display Module
KEY FEATURES OF TM1637 4-DIGIT 7-SEGMENT RED DISPLAY MODULE:
Four 7-Segment LED Displays with 0.36? high red digits
Built-in TM1637 LED Driver
2-wire serial interface for easy hookup to uC
3.3 and 5V compatible
The display has a center colon commonly used for clock applications, but the display also works fine for some other numeric or hex display purposes.


The TM1637 is a driver that supports many functions including on/off and brightness control of the LEDs as well as accessing each of the digits.  Once the display is updated by the MCU, the TM1637 takes care of all the work of keeping the display refreshed, so it removes that overhead from the MCU so it can be off doing other things.


These modules communicate via a 2-wire bus, so they only require 2 data pins plus power and ground.  The bus is specific to this device but there are libraries available such as the “TM1637.h” library for Arduino that hides all the dirty details and makes communicating with the display straightforward.


Module Connections

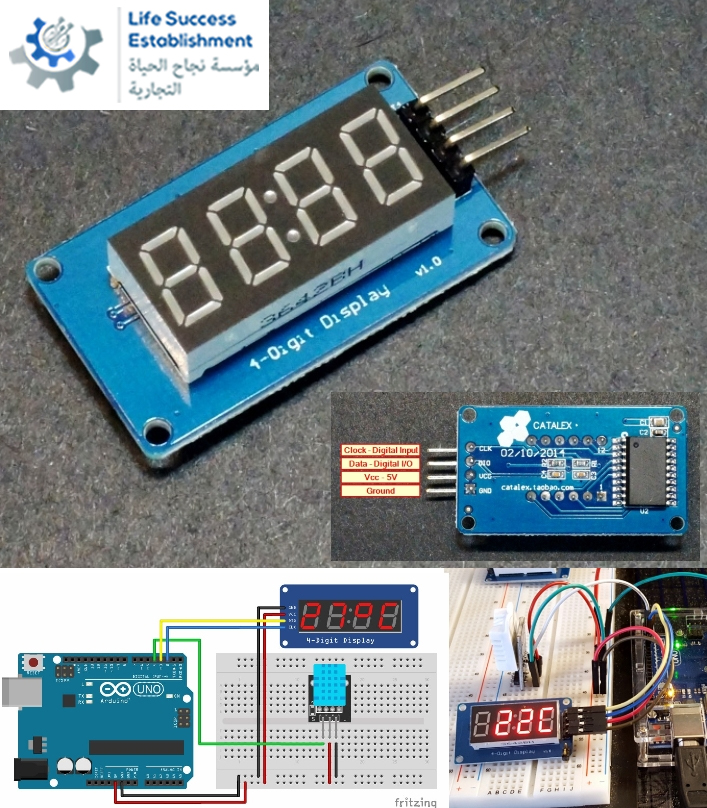

There is a 4-pin right angle male header on the module for making connections.


1 x 4 Header


CLK =   Clock Input.  Connect to any digital pin on MCU.
DIO =   Data I/O.  Connect to any digital pin on MCU.
VCC =   3,3 or 5V to match MCU power.
GND =  Ground.  Must be common with MCU ground.
