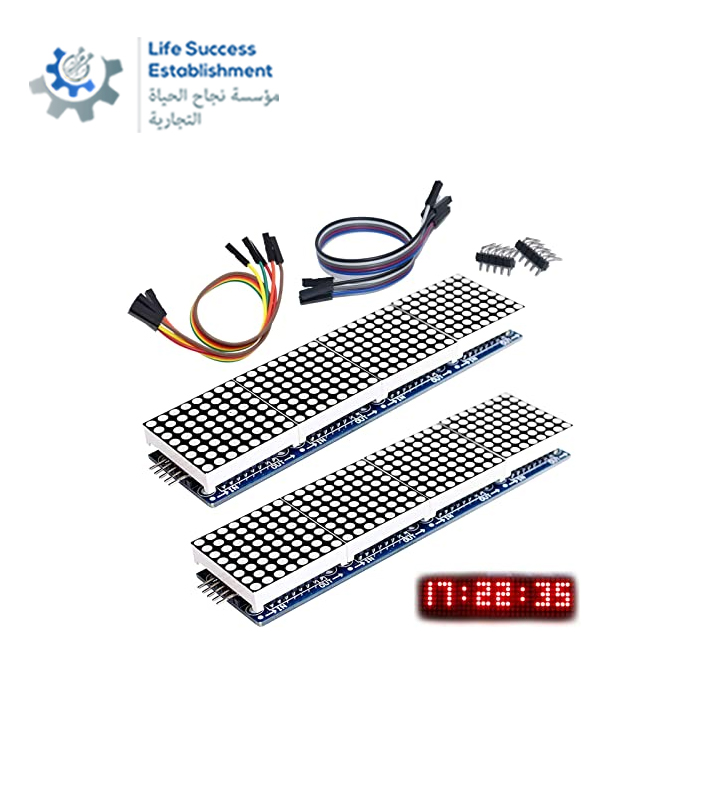

MAX7219 Red Dot Matrix Module with wires
Sold By :
Price :
SAR14.00 /1
SKU : MATRIXM01-G48
| MAX7219 Dot Matrix MCU LED Display Control Module For Arduino Raspberry Pi A single module can drive an 8 x 8 common cathode lattice Operating voltage: 5V Size: 5 x 3.2 x 1.5 cm (L x W x H) LED color: red With four screws hole, aperture 3mm With input and output interfaces, supports multiple modules cascade Wiring instructions: 1. The module left side as an input port and the output port on the right 2. To control a single module, just connect the input port to the CPU 3. When cascading multiple modules, the input port of the first module connect to the CPU, the output port connect to the input port of the second one, and so on. In the case of 51 MCU: VCC ? 5V GND ? GND DIN ? P22 CS ? P21 CLK ? P20 Note: 1. VCC and GND is not reversed, it would burn the chip! 2. When the 51 microcontroller P0 port controlling, must be connected to the pull-up resistor, it is recommended that the resistance of 4.7K--10K 3. Please install lattice into the round hole first, and then insert the round hole to PCB board and weld. Face the side of lattice with words, from left to right pin order is 123456. PCB board 1st pin is square pad! 4.Electrolytic capacitors long-pin as positive, short-pin as negative; ceramic capacitor hsa no positive and negative points Tutorial 8 x 8 LED array driven by MAX7219 on the Raspberry Pi via python http://raspi.tv/2013/8-x-8-led-array-driven-by-max7219-on-the-raspberry-pi-via-python Package Includes: 1 x LED module 5 xCables |
