SKU : 7LCD58RB-F10A

FPV 5802S 40CH Receiver + LCD monitor + Battery 5.8ghz

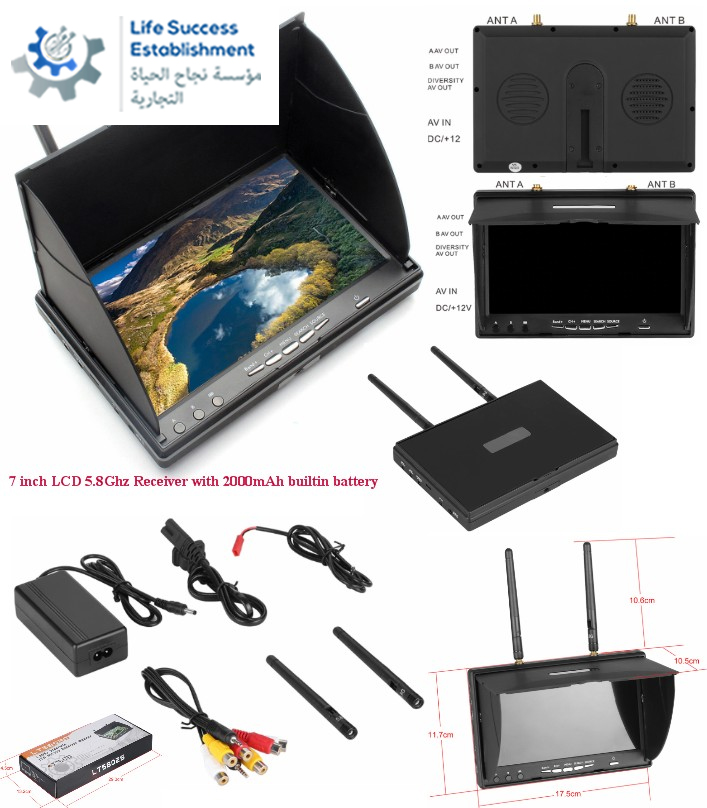

5802S 5802 40CH Raceband 5.8G 7 Inch Diversity Receiver Monitor with Build-in Battery

Description:
Item Name: 5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Sensitivity: -90dBm
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10?~+ 65 ?
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)


Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time

Band and Channel selection
  CH  CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
GROUP
A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
C 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
D 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ

Package Included:
1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger
