SKU : 0.96LCDI2C-H42

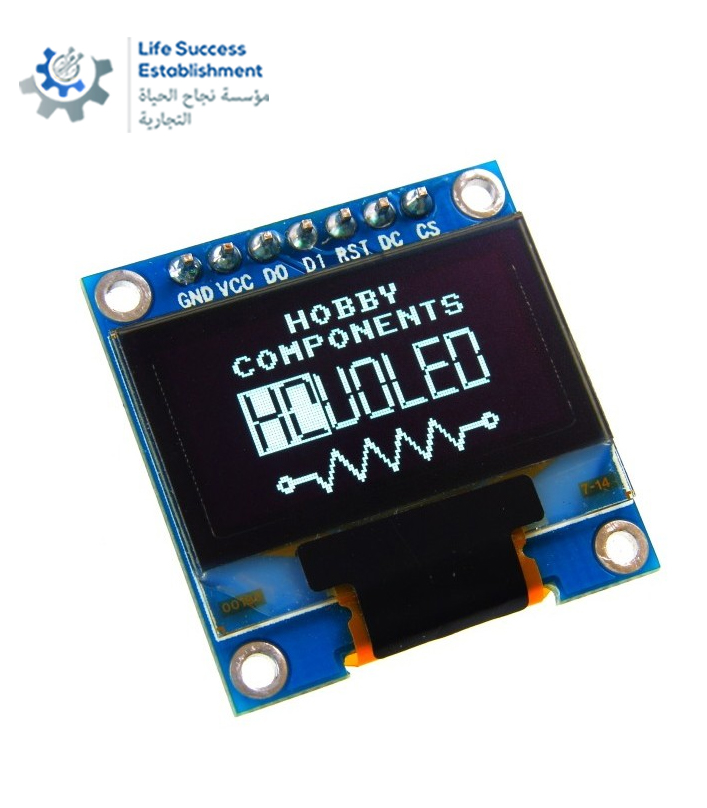

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

The use of OLED technology offers the following advantages for flat-panel displays

A simplified manufacturing process compared to TFT-LCD
Self-emitting light, in contrast to the required backlight for TFT-LCD
High luminosity
Lightweight and thin (less than 2 mm)
Capable of wide viewing angles>160
Low operating voltage and power consumption
Quick response (< second>
Wide range of operating temperatures (-30c to 70c)
Specifications:
High resolution: 128 * 64
Viewing angle:> 160 degree
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 c ~ 70 c
Module Size: 27.0MM * 27.0MM * 4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306
Character Color: Blue or white
I2c Address: 0x3C
